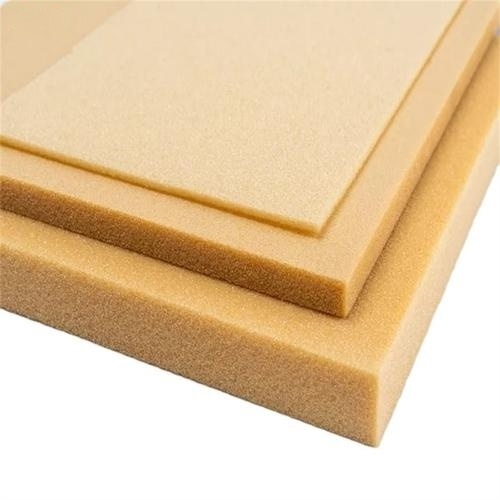

PVC foam core for marine and wind power

Our PVC foam has DNV certifications grooved, perforated and carve service is available wind power generation, rail transportation, yacht, aerospace, energy-efficient buildings etc.

If you do not find the specifications you need , please contact us for customization.

TypicalPerformance	unit	PC48	PC60	PC80	PC100	PC130	PC200
Colour	/	lilac	Yellow	green	Red	blue	hazel rown
Nominal Density	Kg/m3	48	60	80	100	130	200
Thickness	mm	2-80	3-75	3-60	3-60	3-58	3-48
Compressive Strength	MPa	0.66	0.92	1.36	1.86	3.07	5.26
Compressive Modulus	MPa	45	69	92	134	162	296
Tensile Strength	MPa	1.03	1.54	1.92	2.69	4.2	5.27
Tensile Modulus	MPa	47	65	87	125	155	287
Shear Strength	MPa	0.69	0.95	1.37	1.64	2.57	3.88
Shear Modulus	MPa	15	19	28	35	48	66
Shear Elongation	%	12	27	30	34	45	48
Thermal Conductivity	W/mK	0.031	0.031	0.033	0.035	0.039	0.048
Water Absorption	%	1	1	1	1	1	1
